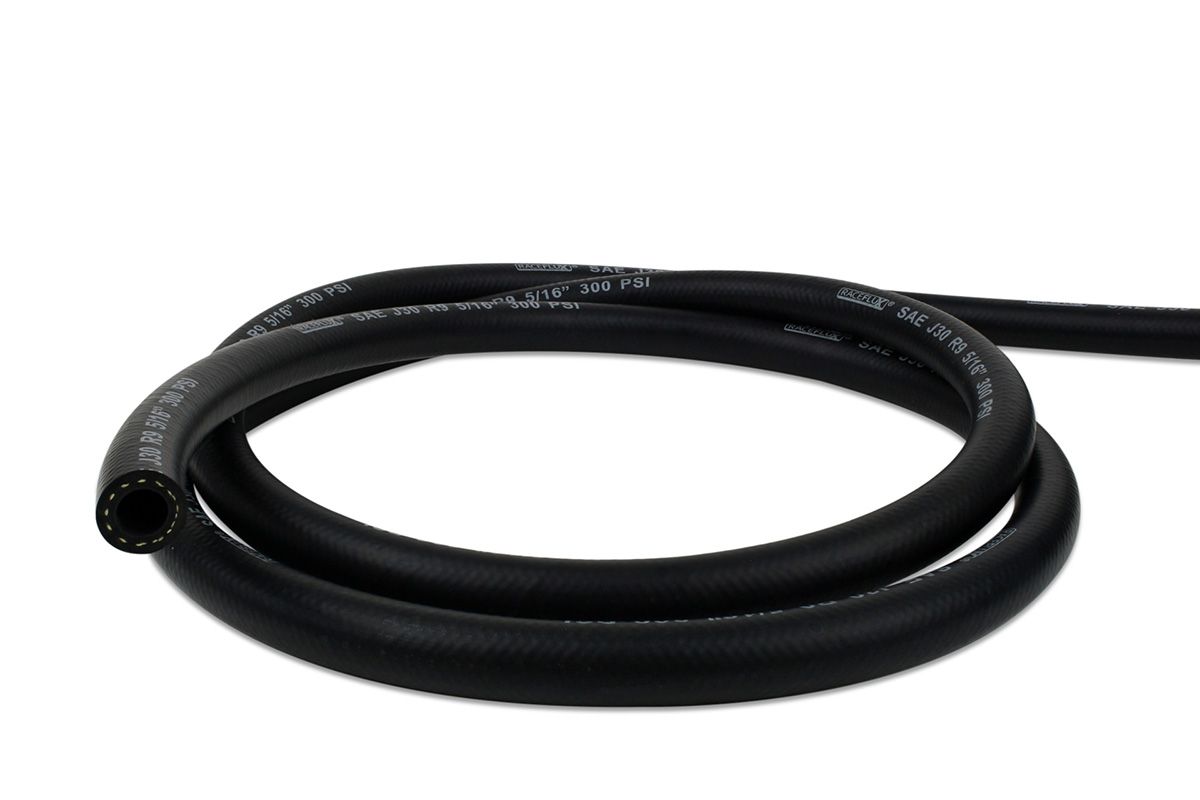

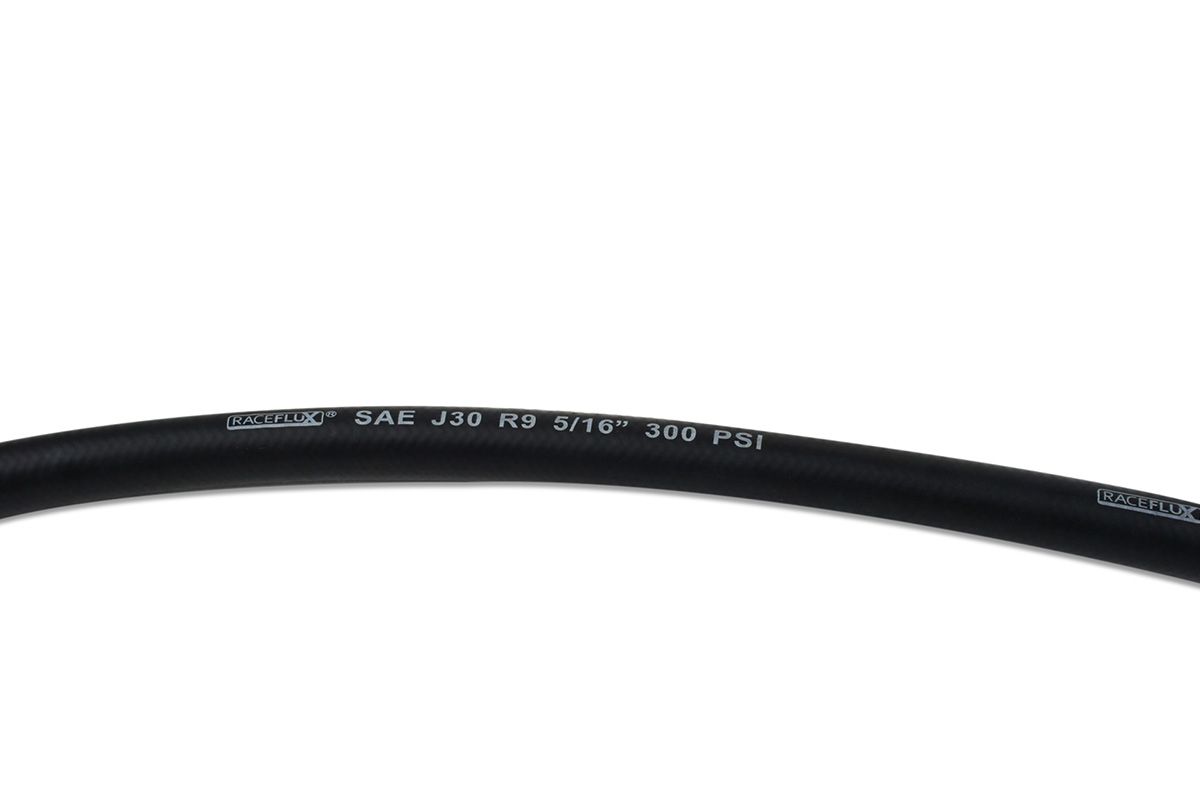

RaceFlux FKM SAE J30 R9 Push-Lock Fuel Hose, 5/16" ID

RaceFlux FKM SAE J30 R9 Push-Lock Fuel Hose, 5/16" ID

Regular price $3.75 USD
Regular price Sale price $3.75 USD
Sale Sold out

Sold by the foot.



This SAE J30 R9 rated hose features a Viton® Fluoroelastomer (FKM) inner layer for compatibility with nearly all automotive fluids and vapors including fuel, engine oil, gear oil, transmission fluid, coolants, water, and air. An embedded aramid fiber braid serves as reinforcement while an outer layer made from Epichlorohydrin (ECO) rubber gives it a much higher maximum operating temperature than Nitrile rubber.

Certified for use with racing fuels, ethanol-based fuels (E85+), diesels/bio-diesels, methanol, and ethanol/gasoline mixtures. This hose will not deteriorate, dry, harden, or permeate fuel (emit fuel vapor) with the presence of ethanol in gasoline. This hose is also ideal for use in crankcase positive pressure ventilation (PCV) and evap lines.



This hose is NHRA approved and can be found on the NHRA approved products list.



May be used with RaceFlux and other brand push-lock or hose barb fittings.

Please note: Hose clamps (i.e. worm-gear or Oetiker ear clamps) are REQUIRED when:

  1. Using smooth hose barb fittings
  2. Using push-lock fittings with an operating pressure above 10 psi

Failure to install a hose clamp when necessary will likely result in failure and/or serious damage (i.e. a hose backing off the fitting).


Specifications
Part #
PH1-05
Hose Size
5/16" ID
Size
5/16" ID
Brand
RaceFlux
Hose Series
Push-Lock (PH Series)
Fitting Series
Push-Lock (PL Series)
Smooth Barb (B Series)
Color
Black
Hose Style
Push-Lock
Applications
Breather and vent lines
Fuel (outside of tank)
Gauge and sensor lines
Vacuum lines
Other oil water and air systems
Fluid Compatibility
Air and gas
Alcohol
Coolants
Engine oil
Ethanol-based fuels (E85+)
Ethanol/gasoline mixtures
Gear oil
Methanol
Nitrous Oxide
Power Steering Fluid
Racing fuels
Transmission fluid
Vacuum
Water
Standards & Certifications
Permeation rating per SAE J30 R9
Conductive (Anti-Static)
Yes
Inner Diameter (I.D.)
5/16"
Outer Diameter (O.D.)
0.55"
Outer Cover
ECO (Epichlorohydrin)
Inner Bore Material
Fluoroelastomer (FKM)
Reinforcement
Aramid Fiber
Minimum Bend Radius
5.5" (140 mm)
Minimum Operating Temperature
-40°F (-40°C)
Maximum Operating Temperature
302°F (150°C)
Maximum Operating Pressure
300 psi (20.68 bar)
Vacuum Rating
23.9 in/Hg (810 mbar)
Burst Pressure
1000 psi (68.94 bar)
Part Weight
0.46 lb/ft (0.69 kg/m)
